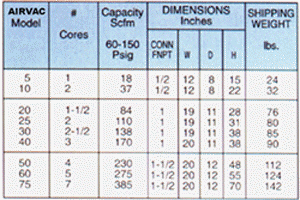

Desiccant Dryers (
Specifications )
|
|
|
|
|
|
INSTALLATION
-
Desiccant Dryers should always
be installed after the receiver tank
-
Always duplex the desiccant
dryer when no existing dryer is present.
-
Keep refrigerant dryers in-line
before the receiver tank, as they provide the best
pre-filter to a desiccant dryer.
MAINTENANCE
-
Only maintenance required is
the changing of the 1/4" desiccant beads every
two years, or when necessary.
-
We offer installation of our
dryer and all major components are readily available
from stock.
-
1/4 turn oxygen service valves
can be supplied with dryer if requested for field
installation.
-
Please specify the type of
Medical Air System you have, ( SIHI, NASH, MEDAES,
etc. ) the number of compressors, and the amount of
run-time. We will size the correct dryer and orifice
for your particular system.
SERVICE
-
Airvac Technical Services
offers a complete line of medical air components as
well as installation and maintenance of these
components. For more details, call us at
1-800-678-1052, or fill out our
request form, and one of our representatives will
be happy to answer any questions.
|
| PARAMETERS
Pressure Dew Point Reduction : 70-90ºF
Operating Pressures : 60-150 Psig
Operating Temperatures : 30-120ºF
Controls : Solid State,110-120v,1Ph,60Hz
Related Conditions :
100ºF inlet air temp
100 Psig inlet air press.
100% inlet air
|
|
|
