Dew Point Monitor ( Specifications )

MEASUREMENT
Range:
* Dew/ Frost Point:

Accuracy:
* Dew/ Frost Point:

FUNCTIONALITY
Power:
Operating Temp.:
Control  unit/sensor
Sample Connection:
Sample Flow:

Sample Pressure:
Outputs:
* Analog:
* Range:
* Compliance:

Display:
Alarm:
* Audible

* Relay


* Visual





-10 to 122F (S1)
-45 to 122F (S2)**

0.5F (Entire Range)


95-260 VAC,50-400Hz
32 to 122F
1/4" compression fitting
.5 to 5.0scfh, through
integral flow meter+valve


0 to 150psig,55psig nominal

4 to 20 mA
-58 to 122F
9.0VDC, 450ohms

8 digit alpha LED,.5" Red

>98db at 2ft with means to
temporarily disable
1 Form C, non-latching,
10A @240VAC 8A @24VDC
1/2HP @ 240VAC
Flashing display message

PHYSICAL

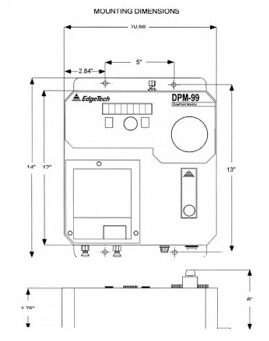

Dimensions:    14"H, 10.7"W, 3.75"D
Weight:          7lbs.
Mounting:       Wall mount  standard
Material:         Aluminum

STANDARD FEATURES
* Automatic Balance Control (ABC)
* 8 Digit Alphanumeric Display. .5" High
* User programmable alarm
* Integral flow meter and valve
* Audible and visual alarms
* Alarm Relay, Form C
* Scratch resistant rhodium mirror
* Analog Output, 4-20mA
* Microprocessor Controlled
* Wall mounted

OPTIONAL FEATURES
* Low Dew Point Kit: 2 stage sensor
    ( recommended for Desiccant Dryers)
* Filter Kit: In-line particulate/
                   coalescing filter
